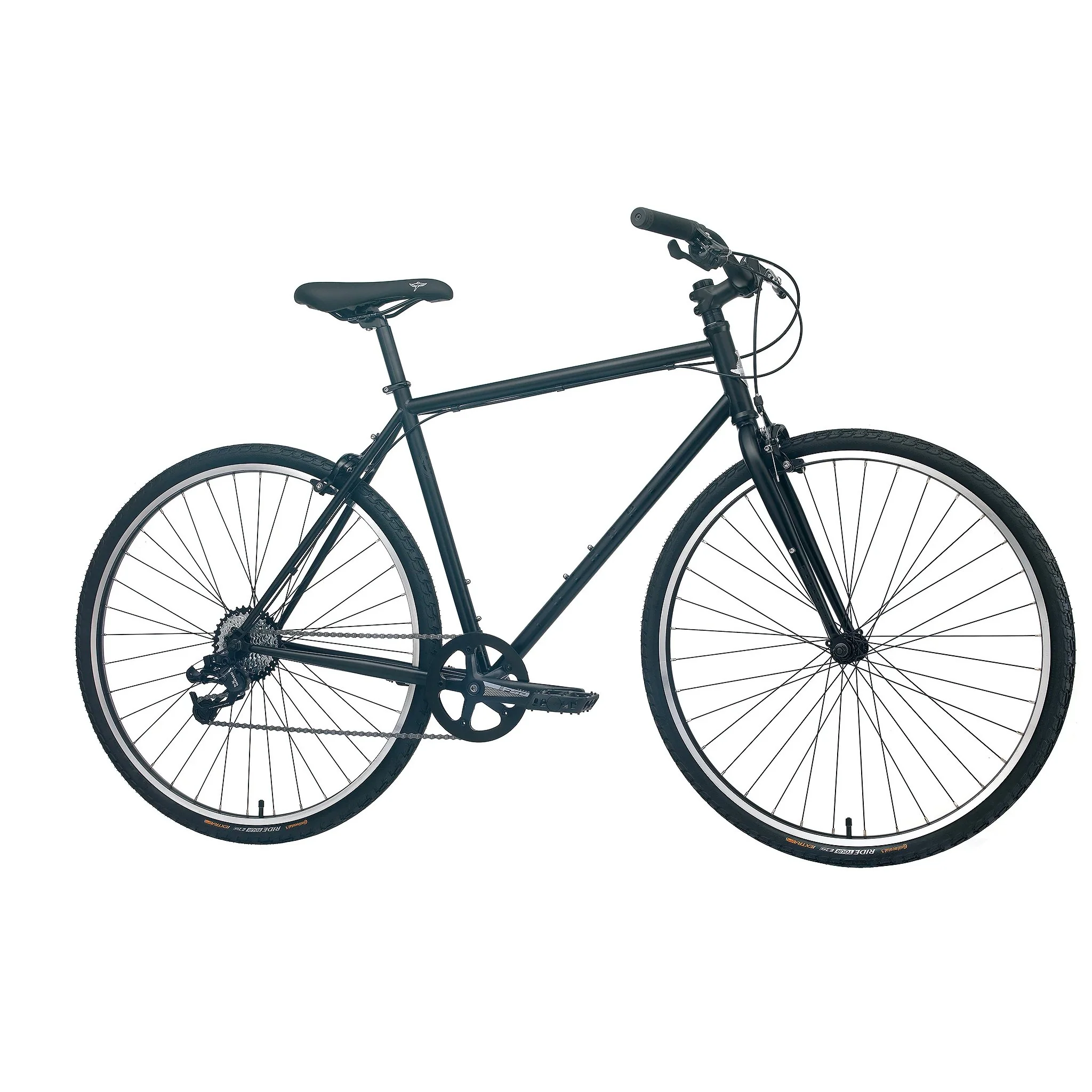

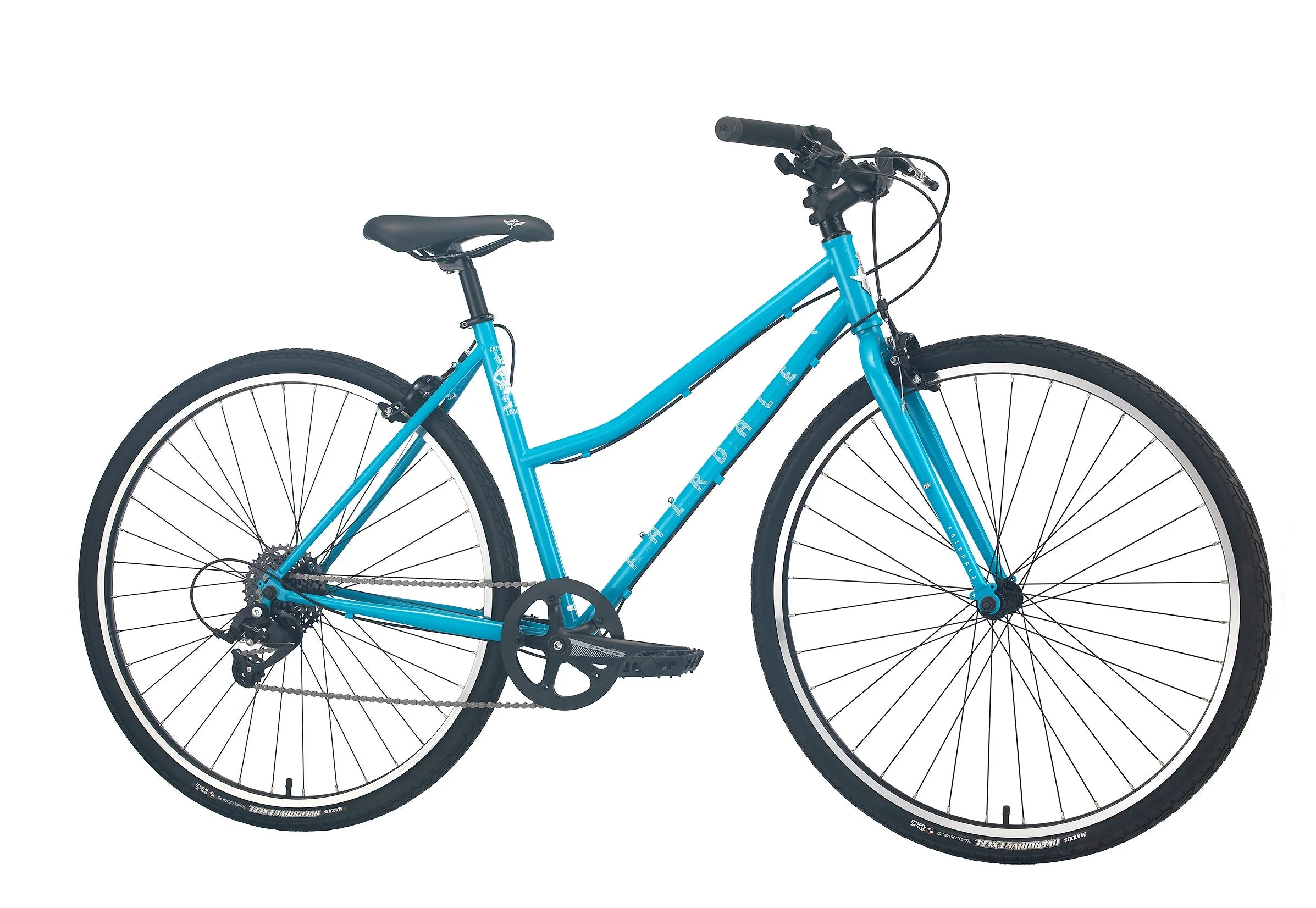

The Lookfar will happily get you where you need to go. And, it'll make you want to ride even when you don't have to go anywhere. That's the thing about a good bike; mundane commutes are fun, and riding for pure joy of riding a bike is a new pastime.

The Lookfar has 8 easy-to-use gears operated by one thumb shifter. Wide reliable tires are fast on the road and big enough to handle rough terrain. The Lookfar's durable steel frame shares geometry with the Weekender model, known for its all-day comfort. Make the "getting there" part of a journey the best part onboard a Lookfar.

Sizing:

XS: 5'0" - 5'6" (49cm)
Small: 5'2" - 5'7" height (52cm)
Medium: 5'7" - 5'10" height (55cm)
Large: 5'9" - 6'1" height (58cm)
Frame: 1020 Steel, with Rack and Fender mounts
Fork: 1020 Steel, 1 1/8”
Handlebar: Fairdale Archer v3, Aluminum
Stem: 70mm, Forged Aluminum
Headset: FSA, Sealed Integrated, 45º/45º
Brake Lever: Aluminum, Short Pull
Brake: Aluminum, Dual Pivot, 55-75mm reach w/Quick Rels.
Grips: Fairdale Swan
Saddle: Fairdale
Seat Post: Micro adjust, 27.2mm
Seat Clamp: Fairdale, 30mm
Cranks: FSA Tempo 1X (S=165mm, M=170mm, L/XL=175mm)
Chainwheel: 42t
BB Parts: FSA
Pedals: Odyssey Twisted PC
Rims: 700c, 36-Hole, Schrader Valve, Aluminum
Front Hub: 36H, 3/8” Axle, Aluminum Shell, Looseball
Rear Hub: 36H, 3/8” Axle, 7-Speed, Aluminum Shell, Looseball
Tires: Continental Tour Ride, 700c x 42mm
Chain: KMC Z8.1, 8-Speed
Driver: 8-Speed, 13-34t
R. Shift Lever: SRAM X4 Trigger, 8-Speed
*R. Shift Lever Alternate: Microshift TS39-8R, 8-Speed
R. Derailleur: SRAM X4, Mid-cage, 8-Speed
*R. Derailleur Alternate: Microshift RD-M26CS, 8-Speed
Shift Cable: Fairdale

Size	XS (49cm)	S (52cm)	M (55cm)	L (58cm)
Top Tube (Effective)	508mm	525mm	552mm	578mm
Top Tube (Actual)	495mm	507mm	531mm	559mm
Seat Tube (BB Center to TT Top)	385mm	436mm	490mm	538mm
Seat Tube (BB Center to TT Center)	317mm	370mm	448mm	496mm
Seat Tube Angle	74.5 °	74°	73°	73°
Head Tube Length	100mm	120mm	140mm	160mm
Head Tube Angle	69.6 °	70°	71°	72.5°
Chain Stay Length	440mm	440mm	440mm	440mm
Wheelbase	1021mm	1030mm	1038mm	1050mm
Standover	698mm	733mm	780mm	815mm
Stack	521mm	541mm	564mm	589mm
Reach	363mm	370mm	379mm	398mm
Fork Length	401mm	401mm	401mm	401mm
Fork Offset	50mm	50mm	50mm	50mm
BB Drop	68mm	68mm	68mm	68mm
Dropout Spacing	135mm	135mm	135mm	135mm
BB Type	English 68	English 68	English 68	English 68
Seat Post	27.2mm	27.2mm	27.2mm	27.2mm
Seat Clamp	30mm	30mm	30mm	30mm
Approx. Max Tire Width	42mm	42mm	42mm	42mm
Wheel Size	700c	700c	700c	700c
